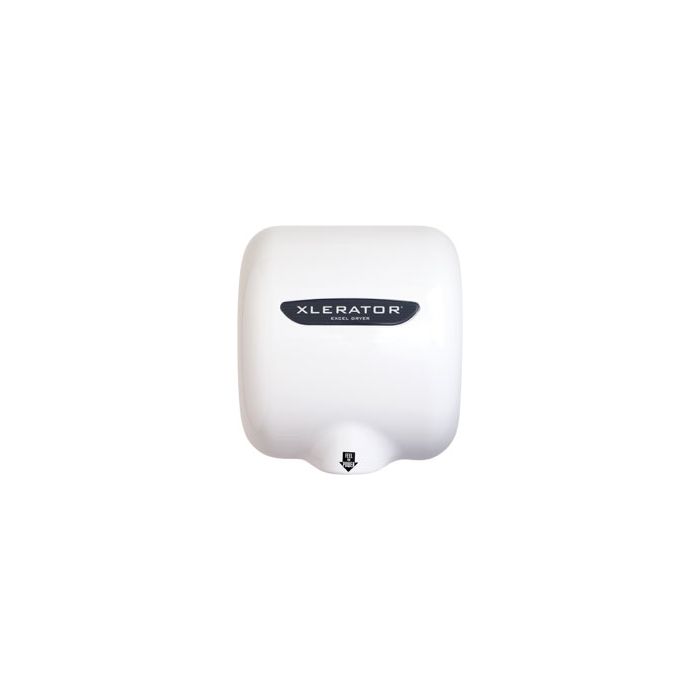

Excel Dryer Xlerator Hand Dryer with White Thermoset Cover

Features and Benefits

• 10-15 Second Dry Time*
• 80% Less Energy Than Conventional Hand Dryers
• 95% Cost Savings Vs. Paper Towels
• Virtually Maintenance Free
• 5-Year Limited Warranty
• GREENSPEC® Listed and Helps Qualify for several LEED®credits
• A Hygienic Hand Drying Solution
• Over a Decade of Proven Performance

Specifications

• Dimensions: 11 3/4" W x 6 11/16" D x 12 11/16" H
• Weight:  15 lbs.
• Color: White (Thermoset Cover)

Construction

All covers will be fastened to a base plate by two chrome plated tamper-proof bolts. Cover shall be one of the following:

Die-cast zinc alloy - One-piece, heavy-duty, rib-reinforced, lightweight, unbreakable, rustproof and all exposed surfaces shall be bright chrome plated or finished with chip-proof, electrostatically applied epoxy paint.
Bulk Molding Compound (BMC) – White reinforced thermoset resin.
Stainless Steel – with a brushed finish.
Special Image – Digital image applied to die-cast or stainless steel covers using patented Kolorfusion Sublimation Decoration process.

Base plate shall be equipped with (3) 7/8" (22 mm) diameter holes, the bottom one is suitable for use with surface conduit.
All internal parts shall be coated according to Underwriters' Laboratories, Inc. requirements.
Entire mechanism shall be internally grounded.

Mechanism

Motor shall be a thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm) which provides air velocity of up to 19,000 LFM (linear feet per minute) at the air outlet and 16,000 LFM at the hands (4 inches [102 mm] below air outlet).

Heating element (970 w) is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal proof. It shall be protected by an automatic resetting thermostat, which shall open whenever air flow is cut off and shall close when flow of air is resumed. It shall produce an air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

Control assembly is activated by an infrared optical sensor located next to the air outlet. The dryer shall operate as long as hands are under the air outlet. There is a 35-second lockout feature if hands are not removed.

LIMITED WARRANTY
The dryer shall be guaranteed to be free from defects for a period of five (5) years. Warranty shall include labor performed at factory as well as the repair or exchange of defective parts, at manufacturer's option.

Quantity Recommendations
One dryer for every two washbasins is sufficient for most applications. If restroom traffic is unusually heavy, we suggest one dryer per washbasin in small installations and two dryers for every three washbasins in larger installations. When a 54" washfountain is used, we suggest four to five dryers.

OPTIONS

• Heat or No Heat: XLERATOReco®: ‘No Heat’ technology uses only 500 watts of energy.
• Noise Reduction: All XLERATOR models can be built with a 1.1” noise reduction nozzle. Lowers decibel level 9 dB by reducing air deflection noise but increases dry time by approximately 3 seconds.
• HEPA Filtration System: Filters 99.97% of bacteria and particles at 0.3 microns from the air stream.
